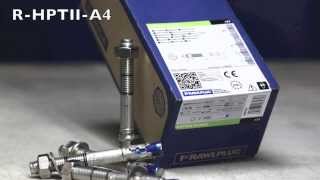

R-HPTIIIA4 Stainless Steel Throughbolt

Stainless steel throughbolt anchor for cracked and non-cracked concrete

Features and benefits

  • Stainless steel anchor for the highest corrosion resistance
  • High performance in cracked and non-cracked concrete confirmed by ETA Option 1
  • Highest quality ensures maximum load capability
  • For applications requiring fire resistance up to 120 minutes
  • Embedment depth markings help to ensure precise installation of the anchor
  • Design of R-HPTII allows drilling and installing directly through the fixture and helps to reduce installation time
  • Suitable for installation in corrosive environments category C1, C2, C3,C4 and C5
  • Anchors can be used in earthquake risk zones - seismic category C1 and C2
  • Adjustable embedment depth in cracked and uncracked concrete C20/25-C50/60
  • The new geometry of the expansion band with an additional ring at its end ensures optimal contact with the concrete
  • Small distances from the edge of the concrete and between the anchors
  • Optimized cone shape to increase the angle of attack of the band on the ground, which translates into greater load capacity of the anchor in concrete
  • Anchor length identification mark to identify embedment length/depth. Facilitates post-installation inspection.
  • factories in Europe, with experience in the automotive and industrial sectorsmingScrews are produced in one of the largest and most renowned cold for
  • The production of concrete screwes takes place on bar stock, manufactured in a Polish steel mill

Product information

Size

Product Code

Anchor

Fixture

Diameter

Length

Max. thickness

Hole diameter

d

L

tfix

df

[mm]

[mm]

[mm]

[mm]

M8

R-HPTIIIA408060/10

8

60

10

9

R-HPTIIIA408075/25

8

75

25

9

R-HPTIIIA408085/35

8

85

35

9

R-HPTIIIA408095/45

8

95

45

9

R-HPTIIIA408105/55

8

105

55

9

R-HPTIIIA408115/65

8

115

65

9

M10

R-HPTIIIA410065/5

10

65

5

12

R-HPTIIIA410080/20

10

80

20

12

R-HPTIIIA410095/35

10

95

35

12

R-HPTIIIA410115/55

10

115

55

12

R-HPTIIIA410130/70

10

130

70

12

R-HPTIIIA410140/80

10

140

80

12

M12

R-HPTIIIA412080/5

12

80

5

14

R-HPTIIIA412100/25

12

100

25

14

R-HPTIIIA412115/40

12

115

40

14

R-HPTIIIA412125/50

12

125

50

14

R-HPTIIIA412150/75

12

150

75

14

Base material

  • Cracked concrete C20/25-C50/60

    Cracked concrete C20/25-C50/60

  • Non-cracked concrete C20/25-C50/60

    Non-cracked concrete C20/25-C50/60

  • Reinforced concrete

    Reinforced concrete

  • Unreinforced concrete

    Unreinforced concrete

For use also with

  • Natural Stone (after site testing)

    Natural Stone (after site testing)

Applications

  • Cladding restraints
  • Barriers
  • Structural steel
  • Curtain walling
  • Handrails
  • Heavy Plant
  • Balustrading
  • Passenger lifts
  • Facades
  • Fencing & gates manufacturing and installation
  • Masonry support
  • Platforms
  • Public seating
  • Racking systems

Installation guide

Installation guide
Installation guide
Installation guide
Installation guide
Installation guide
  1. Drill a hole of required diameter and depth
  2. Clear the hole of drilling dust and debris (using blowpump or equivalent method)
  3. Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached
  4. Tighten to the recommended torque

Installation data

Size

M8

M10

M12

Thread diameter

d

[mm]

8

10

12

Hole diameter in substrate

d0

[mm]

8

10

12

Installation torque

Tinst

[Nm]

20

40

60

Wrench size

Sw

[mm]

13

17

19

External diameter of washer

[mm]

16

20

24

STANDARD EMBEDMENT DEPTH

Min. hole depth in substrate

h0,s

[mm]

60

73

88

Min. installation depth

hnom,s

[mm]

55

68

80

Min. substrate thickness

hmin,s

[mm]

100

120

140

REDUCED EMBEDMENT DEPTH

Min. hole depth in substrate

h0,r

[mm]

45

53

68

Min. installation depth

hnom,r

[mm]

40

48

60

Min. substrate thickness

hmin,r

[mm]

80

80

100

Min. edge distance

cmin

[mm]

40

45

55

Min. spacing

smin

[mm]

35

40

50
